ALTERNATE STRATEGIES: SAND ANIMATION WORKSHOP

SAND ANIMATION I. PLAYING IN PAIRS

SAND ANIMATION II. MORPH - POSITIVE TO NEGATIVE



SAND ANIMATION I. PLAYING IN PAIRS

Break out your tools and start animating in sand.  Don't worry about content right now.  Simply get used to making textures, patterns and simple images that move. Be sure to play with different techniques. Try using brushes, stencils, strainers, spreaders with various edge patterns, and even your fingers.



Studio Workflow: Follow these steps for set-up and work flow in the Downshooter lab:

A. Software and Physical Set-up: Work directly from your personal hard drive so you will have your original frames.

    1. Sign into the Workstation Check-sheet.
    2. Set up Dragonframe at 12 fps (Stop Motion Studio if you're working remotely).
    3. Pour sand into the Lightbox. Work back and forth between the camera position and the Lightbox to establish the parameters of your frame.
    4. Set your Dragonframe Composition Guide for 4:3.

B. Set up Exposure and Focus: Once you have a basic idea of your image and framing you can adjust your exposure and focus accordingly.

    1. Make sure the camera is set to M (Manual) and in Dragonframe, Auto White Balance is OFF, and ISO is 200 or less.
    2. Back-light (light-box), overhead lighting, and exposure settings (shutter speed, lens aperture and ISO) can be adjusted to change the contrast of your image.
    3. Use the Dragonframe Focus guide to set focus on the individual grains of sand. Use a small tab of gaffers tape across the lens focal ring to "lock in" your focus setting.

C. Play with the Sand: Take turns drawing in the sand and trying different ways to animate. . . and remember to have fun!

    1. Try piling, spreading and creating textures in the sand.
    2. Use any of the tools available, including our fingers.
    3. Make a shape in the center of the frame and play with moving it about the frame.
    4. If you're stuck the, try running through some of the principles of animation; Squash & Stretch, Arcs, Exaggeration, etc.

D. Clean up your work station

  1. When you are finished scoop sand back into containers with small and broom and card stock.
  2. Put away any sand tools you've been using.
  3. Use a shop brush to clean up sand from entire work area including keyboard.
  4. Turn off Light-box and leave Camera on Downshooter.
  5. If needed leave comments in the Workstation Check-sheet
E. Post Final Animation:
  • Basecamp Dropbox
  • Discord #sand-animation

Naming:  simpsonB_sandPlay.mp4

Specs:

    • 16:9 Aspect Ratio
    • Animate in 1's @ 12 FPS
    • 1920 x 1080 H264
    • Sound is Optional



SAND ANIMATION II. MORPH - POSITIVE TO NEGATIVE

For the sand morph assignment you will begin with one simple positive morph target (dark against a white field), animate to a completely different morph target (still positive), and then animate to a negative version of your original morph target (white against dark field). Be sure to adjust the exposure on your test image to achieve a strong silhouette.

Reading Note: If you haven't yet, read Animating a Sandy Morph, a 12 step exercise (pp. 82-86 in Fluid Frames).

Studio Workflow: Follow these steps for set-up and work flow in the Downshooter lab:

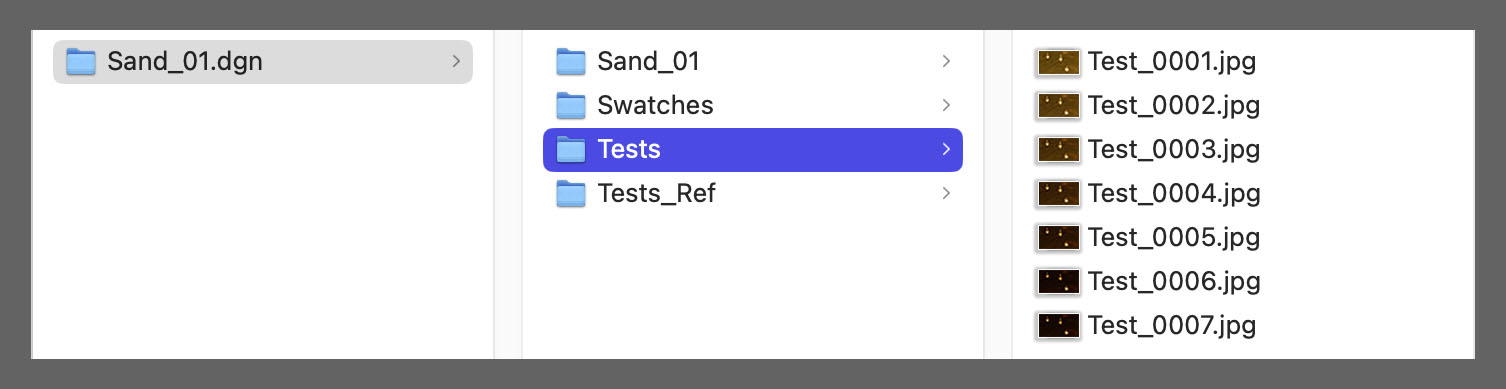

A. Software and Physical Set-up: Work directly from your personal hard drive so you will have your original frames.

    1. Set up Dragonframe at 12 fps (Stop Motion Studio if you're working remotely).
    2. Pour sand into the Light-box Work back and forth between the camera position and the Light-box to establish the parameters of your frame.
    3. Set your Dragonframe Composition Guide for 16:9.

B. Created a Positive Morph Target: This should be a simple, recognizable shape with a strong silhouette.

    1. Compose a dark against the white background of the Light-box
    2. Leave plenty of negative space around your morph target. We can always punch in if we need to in post.

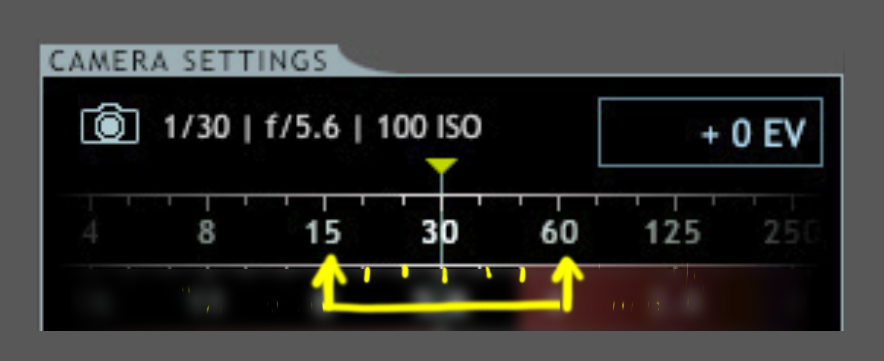

C. Set up Exposure and Focus: Once you have a basic idea of your image and framing you can adjust your exposure and focus accordingly.

    1. Make sure the camera is set to M (Manual) and in Dragonframe, Auto White Balance is OFF, and ISO is 200 or less.
    2. Back-light (light-box), overhead lighting, and exposure settings (shutter speed, lens aperture and ISO) can be adjusted to accomplish a strong contrast of your image.
    3. Use the Dragonframe Focus guide to set focus on the individual grains of sand. Use a small tab of gaffers tape across the lens focal ring to "lock in" your focus setting.

D. Evolving Hold (12 Frames): Use the following simple techniques to maintain subtle motion between frames keeping the sand "alive" for a one second evolving hold.

    1. Use your finger or paintbrush to lightly trace the edges of your image without changing the shape.
    2. Lightly pat textures or gently sprinkle additional grains of sand between frames.
    3. Gently tap the glass next to the image using the vibration to shift the sand.

E. Animate to Second Morph Target (12-24 frames): Animate away from your first target and land on your second. Still dark against the white background of the Light-box

    1. Plan out your animation with simple thumbnail sketches or simply trust the sand to take you to your next morph target.
    2. Think about basic animation principles like ease in & out, anticipation, arcs, and follow-through.
    3. Finish with a second Evolving Hold (12 frames)

F. Animate to Negative Morph Target (24 frames): Animate away from your second morph target towards a negative version of your original Morph Target.

    1. For this morph you will animate back to a version of your original morph target while changing the entire composition to a white image against a dark field.
    2. Try your best to land on a target image that closely resembles your original target in shape and scale.
    3. Similar to our first morph, you can opt to plan out your animation with thumbnails or simply trust the sand along with your sense of movement and composition.
    4. Finish with a second Evolving Hold (12 frames)

G. Clean up your work station:

    1. When you are finished scoop sand back into containers with small and broom and card stock.
    2. Put away any sand tools you've been using.
    3. Use a shop brush to clean up sand from entire work area including keyboard.
    4. Turn off Light-box and leave Camera on Downshooter.
    5. If needed leave comments in the Workstation Check-sheet.

H. Post Final Animation:

    • Basecamp Dropbox.
    • Discord #sand-animation



Naming:  simpsonB_sandMorph.mp4

Specs:































































Stephan Leeper/Central Michigan University 2025
